Jabsco Par Max HD3 Water Pressure Pump 12V 60PSI

In the Box

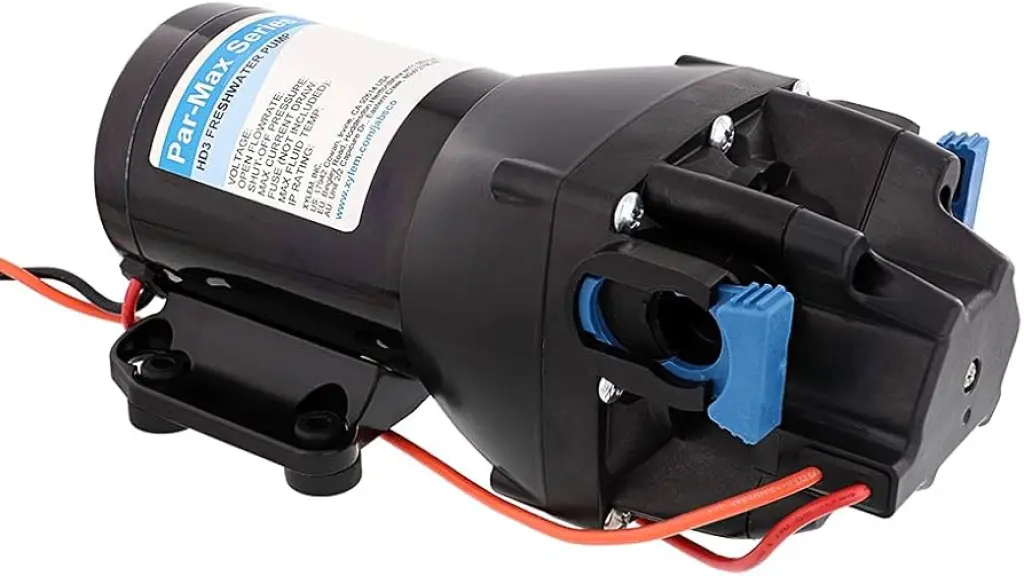

Pump Unit: Jabsco PARMAX HD3 12V 3GPM ( 11 LPM) 60PSI Pump

Port Fittings: 2 x 1/2? (13mm) Straight Hose barb

Strainer: Inline Quick Connect Strainer 40 Mesh

Specifications
Self-Priming: Up to 2.40 m (8ft)
Flow output: 3 GPM (11 LPM)
Fitting straight hose barbs (Two): 1/2? (13 mm)
Pressure switch cuts out at: 4.1 bar (60 psi)
Max Inlet Pressure: 2.1 bar ( 30)PSI
Nominal Voltage: 12 VDC
Voltage Range: 9 VDC ? 13.6 VDC
Max Current Draw: 9 Amps
Fuse Size: 15 Amps – Not included
Leads: 12? (305mm), 14 AWG (2.5mm^2)
IP Rating: IPX6
Typical Installation
